GTE / Adicos System Technology
The Advanced Discovery System is based on a very user-friendly field bus, the M-Bus, which allows the combination of data communication and voltage supply for all types of devices in one single cable. The system thus convinces by its easy assembly and simple expandability.

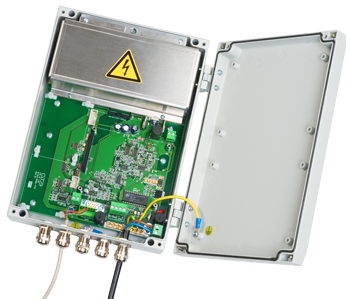

M. Busmaster XF
- Sturdy design with aluminium diecast housing
- Extensive tolerance towards humidity and dust
- Communication with up to 250 detectors
- Power supply for up tp 25 detectors
- Integrated overload protection
- Operation as M-Bus repeater for range extension
- Input for 24V uninterruptible power supply
Downloads
Spec sheet:
adicos-m-busmaster-xf-specsheet
Power supply unit – NT V40-A3
- Sturdy design with sheet metal housing
- Extensive tolerance towards humidity and dust
- Supply of up to 75 detectors
- Intelligent short-circuit detection
- Power-out detection with signal relay
- Error detection with signal LED
Downloads
Spec sheet:
adicos-nt-v40-power-supply-specsheet

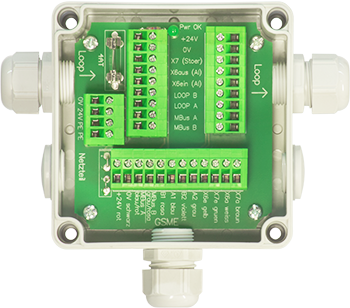

Branching & Connection Box AAB
- Sturdy ABS housing
- LED-indicator for supply-voltage
- Additional terminal for external power supply
- Also available for ATEX-Zone 22
Downloads
Spec sheet:
adicos-connection-box-aab-specsheet
Manual:
adicos-connection-box-aab-specsheet
Connection Box AAB-X22
- Sturdy ABS housing
- LED-indicator for supply-voltage
- Up to five cable glants
- Additional terminal for external power supply
Downloads
Manual:
adicos-aansluitkast-aab-x22-manual

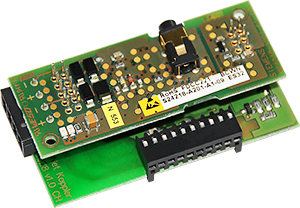

COM – Modules
In order to integrate the ADICOS detectors into an existing fire protection system, different expansion modules are available. Via these breadboards, GSME and HOTSPOTS can be connected amongst others to fire alarm control panels of Siemens, Bosch and Hekatron. For more information, contact our product specialist.

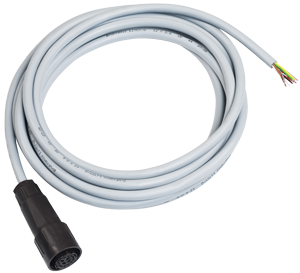

Connection Cable
Since all ADICOS detector versions are uniformly equipped with an industrial bayonet coupling, a ready-made standard cable can be used for installing the system. On one side, this shielded connecting cable is equipped with the ADICOS bayonet connector and is available ex works with a length of 5m. Special lengths are available upon request.
